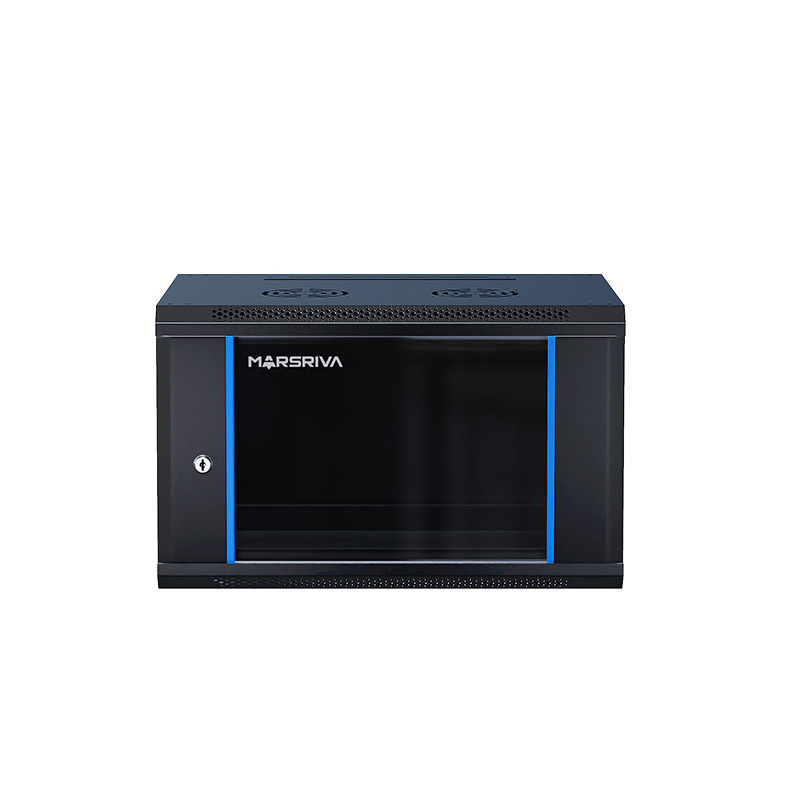

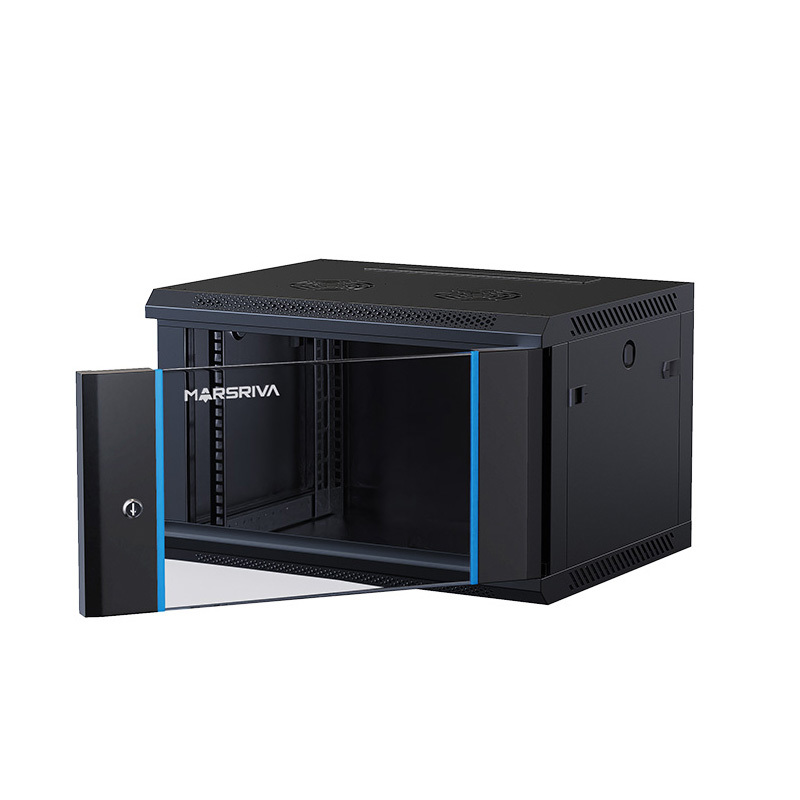

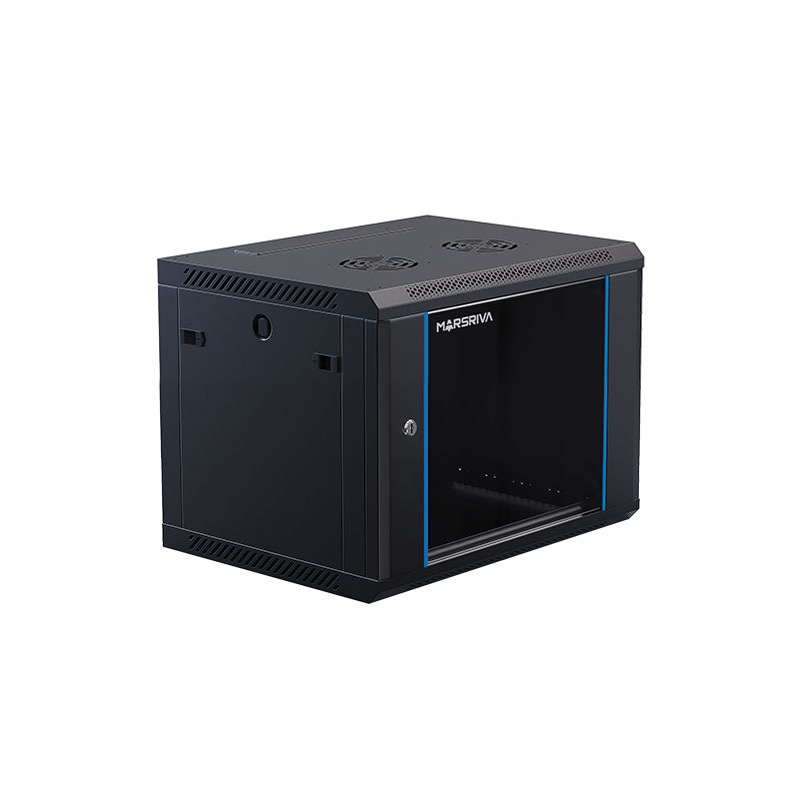

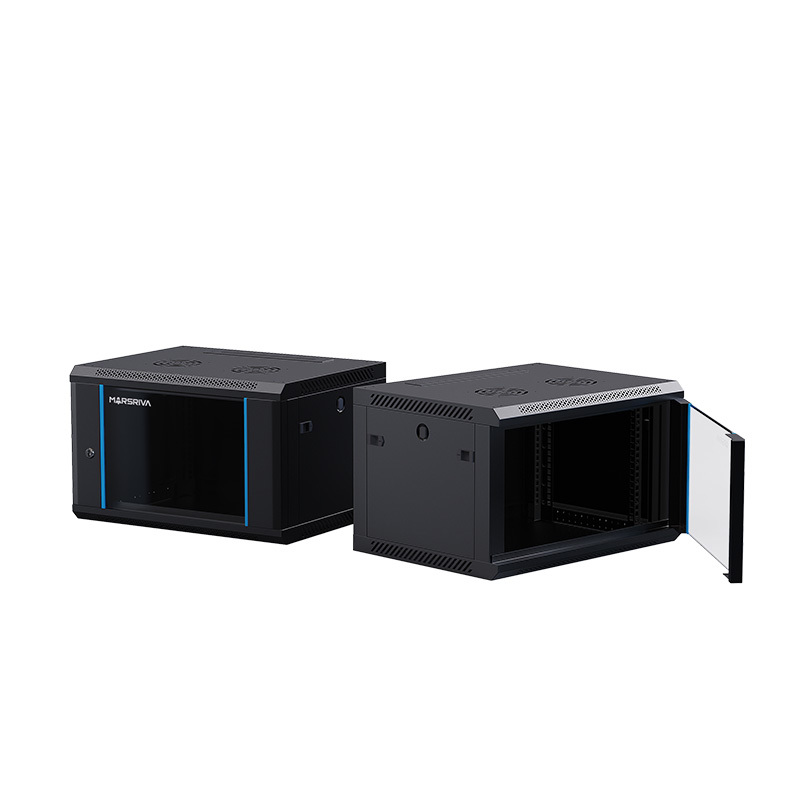

WS6409

0.00

A proper housing for your IT equipments

600mm*450mm ( 9U )


1. Design Features

· Excellent air ventilation design for optimal airflow.
· Toughened glass front door with a secure key lock.
· Multiple cable accesses for convenient wiring and maintenance.

2. Structural Design

· Removable side panels with easy-to-use handy latches.
· Wall-mountable or desktop standalone with versatile installation options.
· Available in both single and double sections to meet diverse needs.

3. Adjustability and Options

· Adjustable mounting profile to accommodate different equipment and requirements.
· Height-selectable for customizable configurations.

4. Material and Coating

· Constructed with SPCC high-quality cold-rolled steel for robust support.
· Tough textured powder coat finish for enhanced durability.

5. Security and Protection

· Equipped with an IP20 protection grade for basic equipment protection.
· Front door with a key lock for added security.

Description

WALL MOUNTED SINGLE SECTION

Model Width (mm)  Depth (mm)  Height (mm) Capacity (U)
WS6404 600 450 280 4
WS6406 600 450 370 6
WS6409 600 450 500 9
WS6412 600 450 635 12
WS6415 600 450 770 15
WS6418 600 450 900 18
WS6422 600 450 1080 22
WS6604 600 600 280 4
WS6606 600 600 370 6
WS6609 600 600 500 9
WS6612 600 600 635 12
WS6615 600 600 770 15
WS6618 600 600 900 18
WS6622 600 600 1080 22
Wall Mounted-Double Section
Model Width (mm)  Depth (mm)  Height (mm) Capacity (U)
WD6404 600 550 280 4
WD6406 600 550 370 6
WD6409 600 550 500 9
WD6412 600 550 635 12
WD6415 600 550 770 15
WD6418 600 550 900 18
WD6422 600 550 1080 22
WD6604 600 600 280 4
WD6606 600 600 370 6
WD6609 600 600 500 9
WD6612 600 600 635 12
WD6615 600 600 770 15
WD6618 600 600 900 18
WD6622 600 600 1080 22
