Description

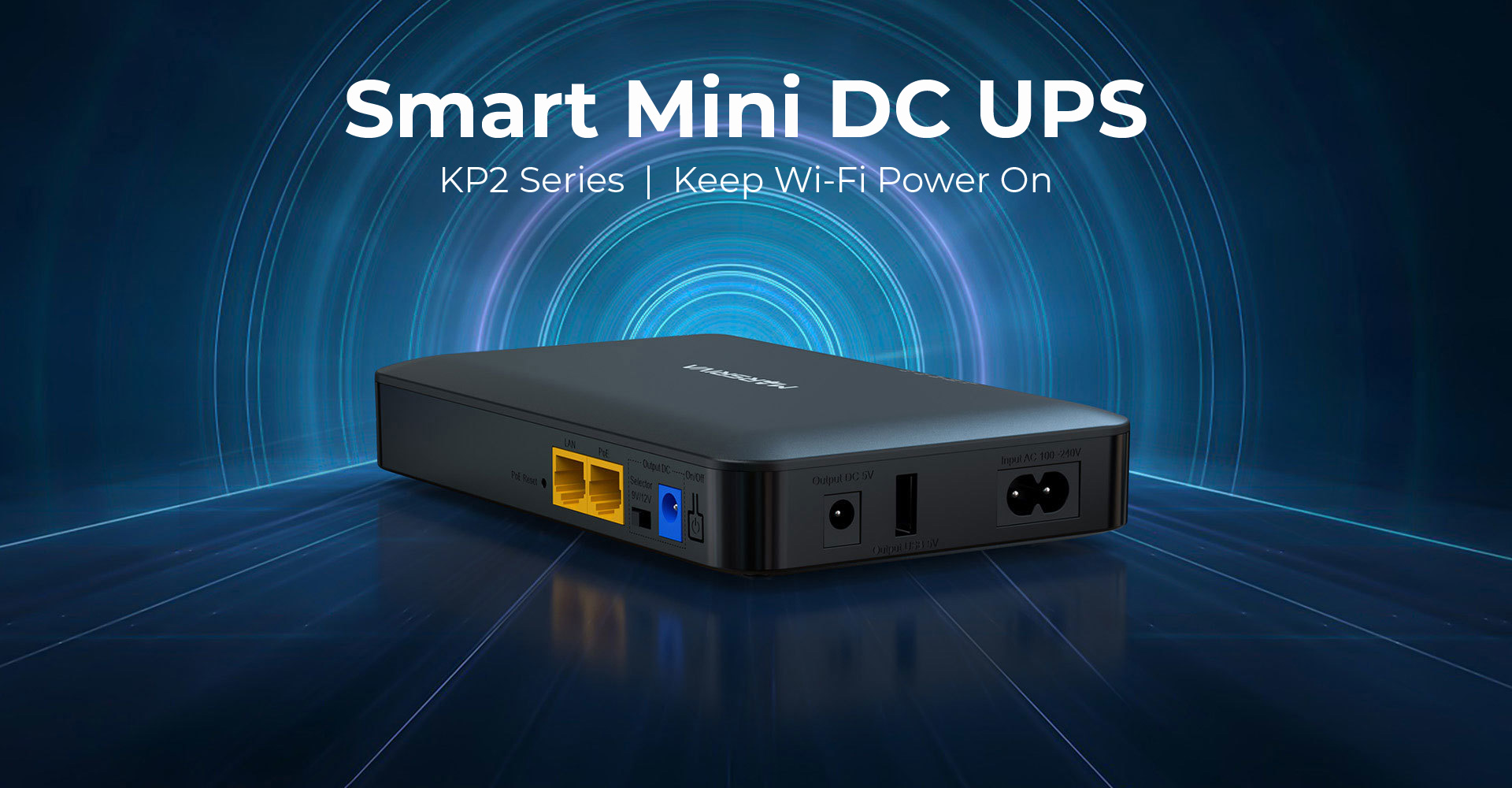

SMART MNI DC UP – KP2 SERIES
| Model | KP2 EC | KP2 | KP2 Plus | KP2 Pro | KP2 Ultra | |
| Battery Capacity | 29.6Wh | 37Wh | 59.2Wh | 29.6Wh | 59.2Wh | |
| Battery Type | Lithium-ion | |||||
| Battery Spec | 3.7V / 8000mAh | 3.7V / 10000mAh | 3.7V / 16000mAh | 3.7V / 8000mAh | 3.7V / 16000mAh | |
| Material | ABS + PC | |||||
| Input | 100–240VAC / 50–60Hz | |||||

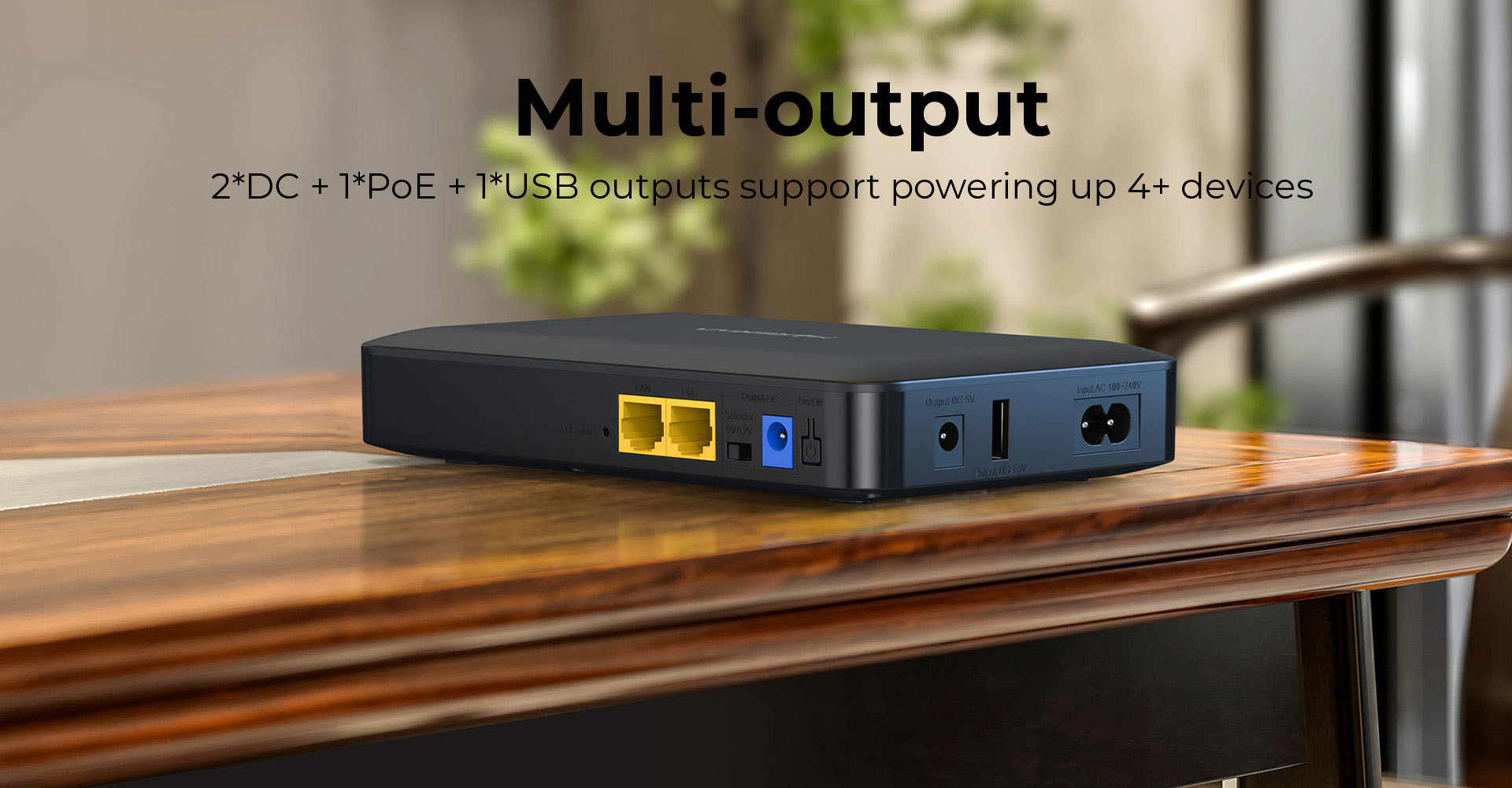

| Output | PoE | 24V / 0.75A | 24V / 1.0A | |||
| DC1 | 9V / 2.0A or 12V / 1.5A | 9V / 2.5A or 12V / 2.5A | ||||
| DC2 | 5V / 2.1A | 5V / 2.4A | ||||
| USB | 5V / 2.1A | 5V / 2.4A | ||||
| Total Output | 18W (Max.) | 18W (Max.) | 18W (Max.) | 30W (Max.) | 30W (Max.) | |
| Net Weight | 340g | 348g | 490g | 358g | 512g | |

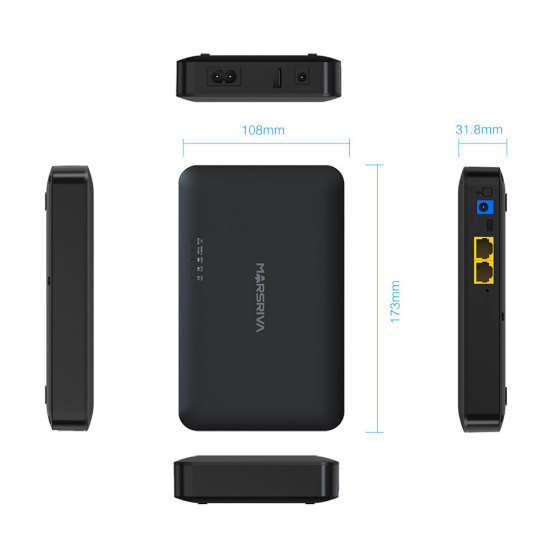

| Unit Dimension | 173mm * 108mm * 31.8mm (L*W*H) | |||||
| Operate Temperature | UPS Mode | 0℃ – 40℃ | ||||
| Battery Mode | -15℃ – 50℃ | |||||
| Operate Humidity | Less than 75%RH | |||||
| Storage | 15℃ – 35℃, 40 – 75%RH | |||||
Specifications are subject to change without notice, all product drawings are for reference only
